Spray heat reacting, is a production technology, obtaining metal oxide powder(s)

by spraying metal salt solutions in a high-temperature furnace and finishing thermal-decomposition, reaction, synthesis or calcination.

Features of spray heat reacting

As it is a multi-component synthesis method of the liquid-phase, it has following advantages:

（1）    Product’s particle size is about serval μm.

（2）    Closely graded partcle (homogeneous qualities).

（3）    Even very small amounts of components can be uniformly injected into the raw materials and dispersed.

（4）    Reduce the mixing of mechanical foreign substances compared to the powder mixing method.

（5）    Capable of obtaining powder particles featured both high surface activity and easy sintering.

Applications

（1）Battery materials

（2）Magnetic materials

（3）Various catalysts

（4）Superconducting materials

       （5）Other materials that require high-quality composite properties...

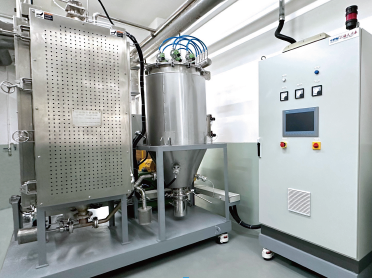

Specialty of spray heat reactor

（1）Furnace body made of specific ceramics, indirect heating.

（2）Up to 900℃ furnace inside temperature, features automatic heat-up and temperature control.

（3）By using Customized-two-fluid nozzle (*imported from Japan）make the atomizing of solution or slurry available.

（4）Compact design.

Flow chart for reference

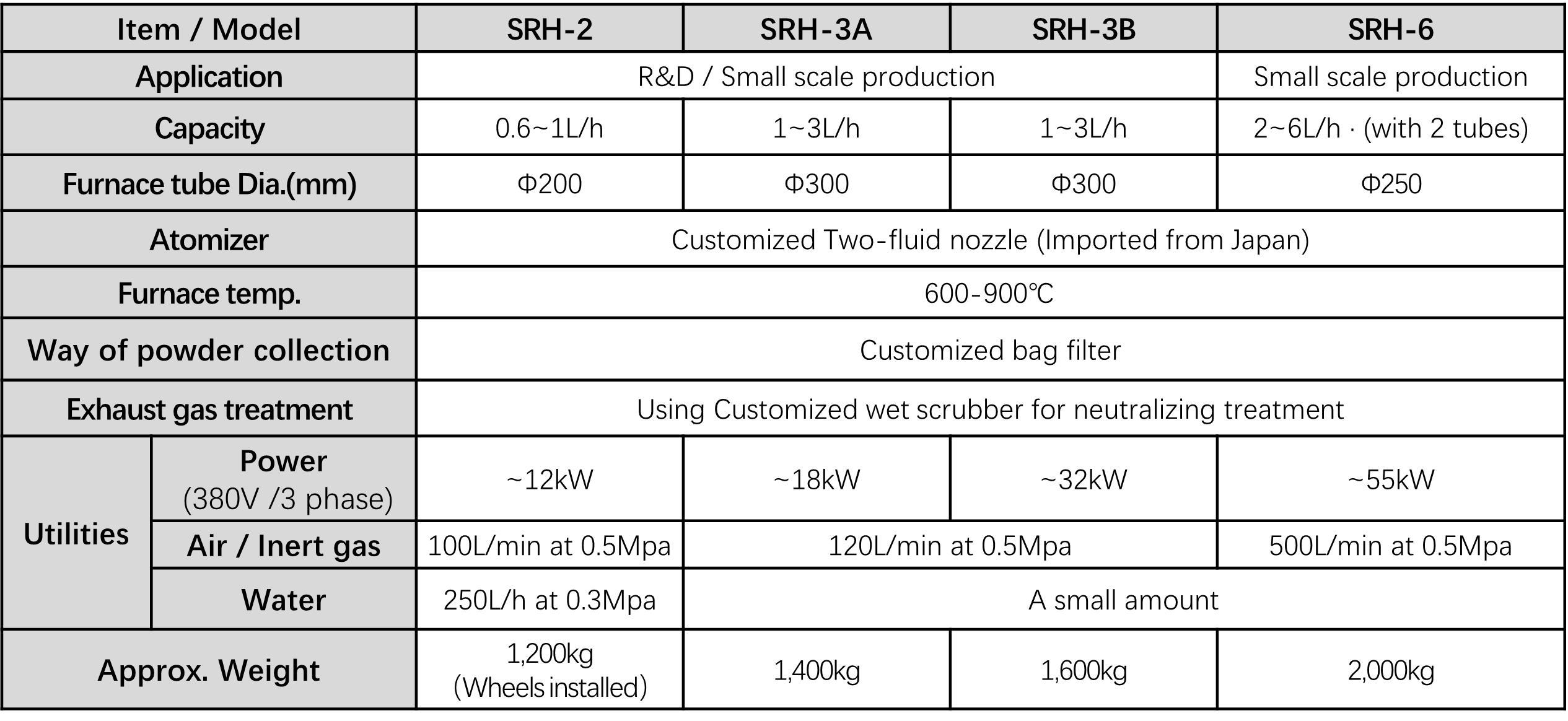

Technical specifications

Remarks: (1)   This table above only shows models with indirect heating.

Please contact our Sales Dept. for those which furnace temp., capacity necessary are bigger than what is shown in this table or direct heating is required.

(2)   This table is just for reference. Please notice that the specification will change once furnace temp. & furnace tube' s height changes.

(3)   The above design and specifications are subject to change without prior notice for product improvement.
